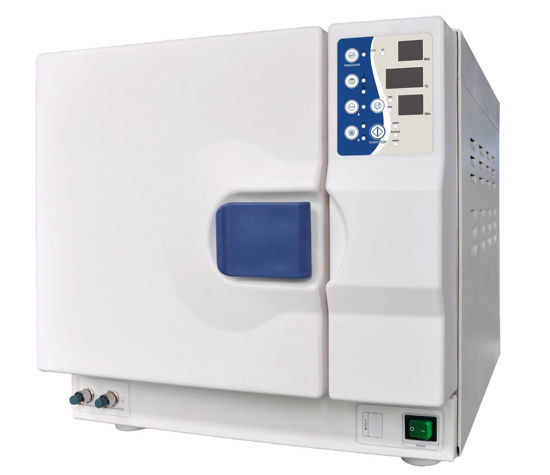

Table Type Pulse Vacuum Steam Sterilizer AAL-17L-B (LED) ARI

PARAMETER

SPECIFICATION

Voltage

AC 220V  ±10%

Frequency

50/60Hz

Wire plug

GB 3 cores/EN 3 cores

Max Hp

1800VA

Electric current

10A

Physical Space

17L

Class

European Class B standard

Sterilizing temperature

121℃，134℃

Special sterilization

Kill active HV,HBV,BSE and spore

Dry procedure

Strong vacuum drying,the residual humidity < 0.2%

Display

LED,multi-languages

Test

Bowie&Dick，Leak

Safety

Safety valve, Automatic check

Sterilizing record

There is a micro-printer optional, and a standard USB connector optional for sterilizing record

Water supply system

Two opened Reservoirs(3.5L fresh water and 5 liter waste water reservoirs), easy for sterilization and clean

Water quality detection

Detect whether water quality meet the requirement

Clean procedure

Automatic clean inside pipe and steam generator

Instrument containers

5 levels with 3 trays

Chamber size

249mm*450mm/249mm*355mm

Net weight

50Kg/47KG
