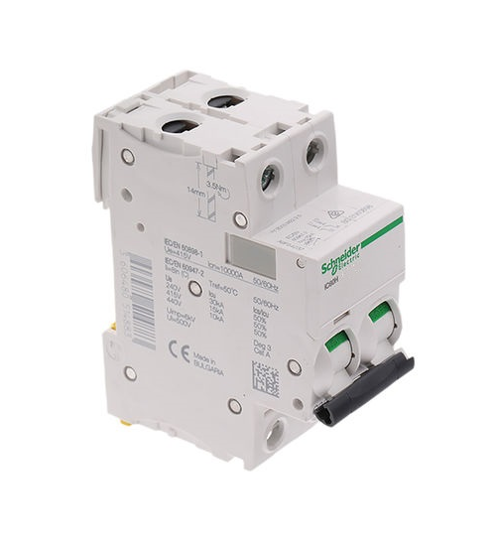

Schneider Electric 100Amp 2Pole MCB

Schneider Electric Circuit breakers are multi-standard circuit breakers which combine the following functions:

Circuit protection against short-circuit currents,
Circuit protection against overload currents,
Suitable for industrial isolation according to IEC/EN 60947-2, standard.
Fault tripping indication by a red mechanical indicator in circuit breaker front face

Number of protected poles:2
Rated current:100Amps MCB
Trip unit technology:Thermal-magnetic
Complementary network frequency:50/60 Hz
Contact position indicator:Yes
Local signalling:ON/OFF indication
Mounting mode:Fixed
Mounting support:35 mm symmetrical DIN rail
Product weight:0.256 kg
Volts: 415 V
Material Type: PVC; Color: White
Ambient air temperature for operation:-25...70 °C
Ambient air temperature for storage:-40...85 °C
Offer Sustainability Sustainable offer status :Green Premium product
Product end of life instructions:Need no specific recycling operations
Contractual warranty period:24 months
Length :54mm
Width :85mm
Depth : 78.5mm
