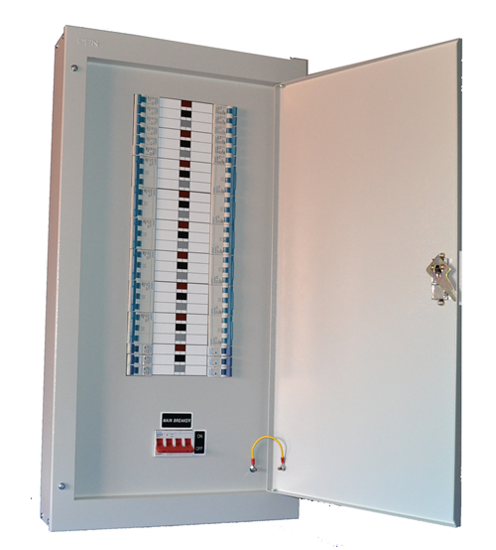

Powertec 12 Way 100A Three Phase(TPN) Distribution Board C/W MCB

Powertec affordable circuit protection you can depend on. With a high-quality, user-friendly design, provide peace of mind with quality and reliability, guaranteed compliance to product standards to provide reliability you can count on.

Fitted with 125A 3P Isolator. Three phase and neutral sheet steel powder coated double door vertical distribution system fitted with two covers - one screwed cover for incoming and outgoing MCBs and the second for protection of MCBs - fitted with colour coated Bus Bar, Neutral Link, Earth Bar and Din Rail. Suitable for use on 240/415V, 50Hz Supply.

Three Phase(TPN) 4, 6, 8 & 12Ways
MCB Protected Socket: are available with a choice of Single Pole, Two Pole, Three Pole, Four Pole, SPN, TPN 10Amp, 15Amp, 20Amp, 32Amp, 40Amp, 50Amp, 63Amp, 80Amp, 100Amp,125Amp,200Amp etc

Features
Compact DBs which occupy minimum space
Raised neutral link for easy wiring
Suitable for surface & fush mounting
Detachable din bar with end stoppers for easy assembly of breakers
Supplied with fully shielded bus-bars
Level marks for providing indication for fitment in wall
Supplied with neutral & earth link, top & bottom detachable plates
Supplied with masking sheet to protect components from cement during plastering
