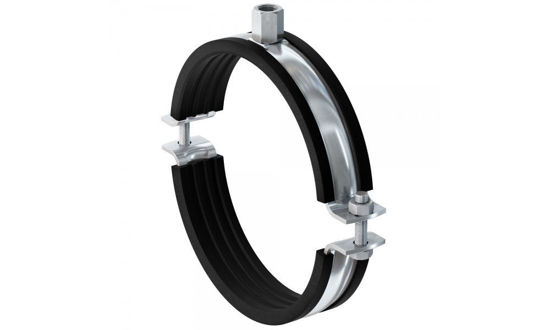

Pipe Clamp FRSM 47-52, M10/M12 - 20 Pcs Packed

Two-screw design for optimized adaptation to tube outside diameter. Loss prevention of the screw. Connection nut with combination thread M10 / M12. Soundproofing.

Be the first to review this product

SKU: RD00018

Call for pricing

Qty:

Product description

The fischer solid pipe clamp FRSM 1 1/2 "M10 / M12 for nominal size 1 1/2" with sound insulation insert for fastening medium to heavy pipes with threaded rods or hanger bolts. The two-screw design allows optimized adaptation to the outside pipe diameter. Connection nut with combination thread M10 / M12 for holding threaded rods or hanger bolts. Pipe clamp screws with loss prevention.

To take advantage

High tested loads guarantee the safe operation of the FRSM.
The connection nut with combination thread M10 / M12, M12 / M16 or M16 enables optimized storage.
The perforated clamp band allows the attachment with 2 threaded rods z. B. for the attachment of cast roof drainage pipes.
The two-screw design allows optimized adaptation to the outside pipe diameter.
The loss protection of the screws ensures trouble-free installation.

characteristics

Material: Steel DD11 (Material No. 1.0332) according to DIN EN 10111
Galvanizing : galvanized, 5 - 9 μm
Connection nut : M10 / M12 = SW17, M12 / M16 = SW22, M16 = SW 24
Locking screw: flat head screw with combi cross slot up to 4 ", from 4" hexagon screw with nut
Material sound insulation insert: EPDM; Chlorine; silicone-free
Temperature range: -50 ° C to +110 ° C
Hardness: 45 ± 5 ° Shore A
Fire behavior: DIN 4102: class B2

Applications

Fixing medium to heavy pipes with threaded rods or hanger bolts

Technical specifications

connecting thread	A	M 10 / M 12
nominal size		1 1/2 "	[Inch]
clamping range	D	47 - 52	[Mm]
Width B	B	105	[Mm]
Height H	H	86	[Mm]
Width x thickness	bXS	25 x 2.5	[Mm]
Height Z	Z	53	[Mm]
Screw		M 6
Max. static load (central train)	N rec.	2.50	[KN]
amount		20	Units)
GTIN (EAN-Code)		4006209937006
