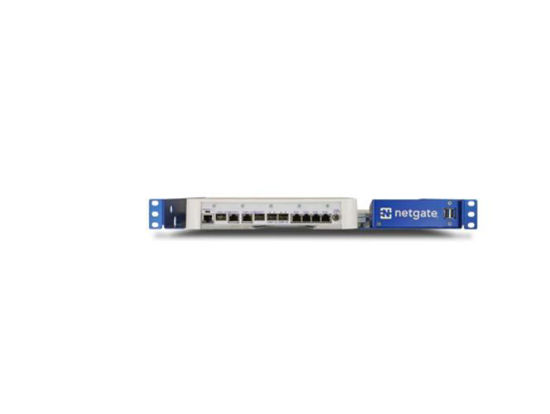

Netgate 8200 MAX pfSense+ Security Gateway

If you need high-throughput firewall, routing, and VPN performance, look no further. The Netgate® 8200 with pfSense® Plus software is the fastest Intel® Atom®-based firewall we offer, in a whisper-quiet rack mount configuration. It is ideal for remote offices, edge deployments, managed service providers, and enterprise networks.

Be the first to review this product

Configuration

Call for pricing

Qty:

L3 Forwarding

IPERF3 Traffic: 18.60 Gbps
IMIX Traffic: 11.76 Gbps

Firewall

(10k ACLs)

IPERF3 Traffic: 18.55 Gbps
IMIX Traffic: 5.1 Gbps

IPsec VPN

(AES-GCM-128 w/QAT)

IPERF3 Traffic: 3.24 Gbps
IMIX Traffic: 810 Mbps

NETGATE 8200 PERFORMANCE TESTS CONDUCTED WITH PFSENSE PLUS SOFTWARE VERSION 22.05

The Netgate 8200 is also available with TNSR software.

TNSR is a high-performance software router capable of producing considerable performance increases far beyond the limits of pfSense Plus software.

HARDWARE SPECIFICATIONS:

CPU	Intel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)
Physical Network I/O ports	(2) 10 Gbps SFP+ WAN ports (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN) Intel i226 ports
Storage	128 GB NVMe M.2 SSD (B+M Key)
Memory	16 GB DDR4 w/o ECC, single channel (soldered down)
Physical Expansion Card Slots
Physical Expansion Card Slots	2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0) 1x Mini-PCIe Slot (Wi-Fi Only)
Console Port	1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)
USB Ports	2x USB 3.0 jacks (USB-A female) Located on right side rear / lead out to right side front panel of 1U rack
LED	3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
Enclosure	1U Rack - Aluminum, plastic, and steel enclosure. 19 x 10 x 1.75 inches 482.6 x 254 x 44.45 mm
Cooling	Active - integrated quiet chassis fan with onboard control
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector. - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included - US Power Cord: NEMA 1-15-P to IEC320-C7 - UK Power Cord: BS 1363 to IEC320-C7 - EU Power Cord: CEE7/16 to IEC320-C7 - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental	0°C (32°F) to 40°C (104°F) - ambient
Certifications	FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA
