Netgate 6100 MAX Secure Router with TNSR software
The Netgate® 6100 with TNSR software is a high-performance, secure router that supports high-speed throughput with management flexibility for service providers, virtual or branch offices, edge to cloud applications and all businesses who need multi-gigabit throughput.
The Netgate® 6100 with TNSR software is a high-performance, secure router that supports high-speed throughput with management flexibility for service providers, virtual or branch offices, edge to cloud applications and all businesses who need multi-gigabit throughput.
SECURE FAST ROUTING
This system combines the power of TNSR with an Intel® C3558 Quad Core CPU with integrated QuickAssist & AES-NI, and 8 GB of memory to significantly improves encrypted throughput and increases RAM performance by up to 50%. The Netgate 6100 with TNSR delivers over 18 Gbps of L3 routing across 8 Independent 1 GbE, 4 2.5 GbE, and 2 10 GbE Flexible WAN/LAN ports.
FLEXIBLE MANAGEMENT
TNSR software configuration through both CLI and RESTCONF API enables the Netgate 6100 to be managed by IT automation platforms like Ansible®, SaltStack®, Puppet®, or Chef™ - which go beyond traditional GUI management techniques to enable both speed and multi-instance management orchestration at scale, along with low-cost deployment and automated operation.
AFFORDABLE & SILENT
The Netgate 6100 with TNSR is ideal for those with high-speed 10 GbE routing requirements on a limited budget. The compact form factor, low power draw, and silent operation allows it to run unnoticed when placed on a desktop, wall, or rack shelf.
HARDWARE SPECIFICATION
CPU | Intel® Atom® C3558 4-core @ 2.2 GHz (Denverton family) with QAT and AES-NI |
CPU Cores | 4 Cores |

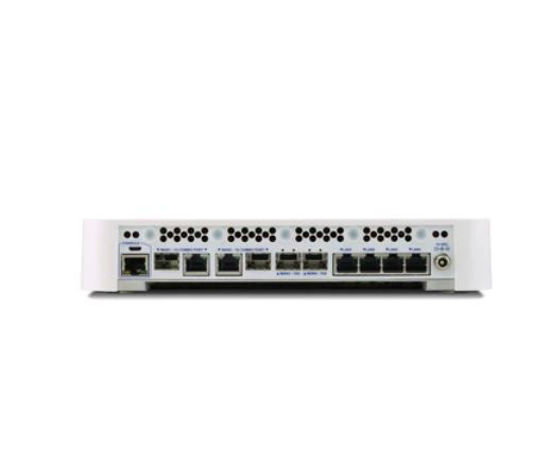

Physical Network I/O ports | (2) 10 Gbps SFP+ cage ports (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) Combo ports (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet ports |
Storage |
128GB NVMe M.2 SSD - Netgate 6100 ("Max" configuration) |
Memory | 8 GB DDR4 w/o ECC, single channel |
Physical Expansion Card Slots | 2x m.2 (Key-B slot) each with dual-SIM per slot (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0) (SIM slots are located on right rear when viewing system from front panel) |
1x Mini-PCie Slot (Wi-Fi Only) |
Console Port | 1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system) |
USB Ports | 2 x USB 3.0 jacks (USB-A female) Located on left side rear when viewing system from front panel |
LED | 3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU |
Enclosure | Desktop - Aluminum, plastic, and steel enclosure. 10 x 7.88 x 1.88 inches 254 x 200 x 47.63 mm |
Mounting | Optional wall or rack mount kit |
Cooling | Passive |
Power | External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included - US Power Cord: NEMA 1-15-P to IEC320-C7 - UK Power Cord: BS 1363 to IEC320-C7 - EU Power Cord: CEE7/16 to IEC320-C7 - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7 |
Environmental | 0°C (32°F) to 40°C (104°F) - ambient |
Certifications | FCC (Class B), IEC / CE, CB, RoHS, UL, RCM, UKCA |
AVAILABILITY
In addition to deployment on the Netgate 6100, TNSR software is also available on the Netgate XG-1537 BASE, XG-1537 MAX, XG-1541 BASE, XG-1541 MAX, as a Bare Metal or VM Image for deployment on 3rd party hardware, or as a VM, or in the public cloud on Amazon Web Services and Microsoft Azure.
The Netgate 6100 with TNSR software includes the first year of the TNSR software subscription with 24x7x365 TAC PRO Technical Assistance from our knowledgeable and highly-rated Netgate Global Support team.
ADDITIONAL INFORMATION
SUPPORT INFORMATION
- TNSR software subscription with Netgate Global Support technical assistance (TAC Pro - 24 hour SLA) is included for the first year. Upgrade to TAC Enterprise for the fastest 4 hour SLA. All support plans offer 24x7x365 availability and a friendly team to assist you.
- For support assistance, click here.
- For service level descriptions, click here.
- Netgate Global Support FAQ is here.
- Help is always available from Netgate Community members on our forum here.
WARRANTY INFORMATION
- One-year manufacturer's hardware warranty information is here.
- Extended warranties for US customers are available from Extend. More information on their offer and warranty policy can be viewed here.
- Standard 30 day return policy. Netgate does not sell seconds or returns. An open box fee may apply.
- All specifications subject to change without notice.
