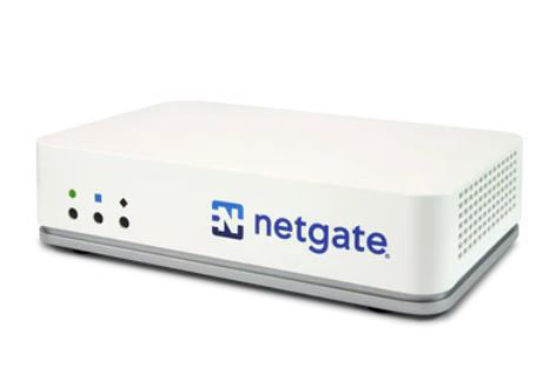

Netgate 2100 BASE pfSense+ Security Gateway
Pound-for-pound, the Netgate® 2100 security gateway appliance with pfSense® Plus software delivers unbeatable performance and flexibility in its class. It is ideal for home, remote worker, and small business deployments that require more compute resources to support the use of multiple pfSense add-on packages and VPN performance to support multiple user- and site-to-site connections. Featuring a Dual core ARM Cortex A53 1.2 GHz CPU, a dedicated 1 GbE WAN port (RJ45/SFP combo), (4) 1 GbE Marvell switch ports, 4GB of DDR4 RAM, and upgradeable storage. The 2100 has additional expansion slots available for DIY LTE, Wi-Fi or M.2 SSD expansion.
The Netgate 2100 is a compact and powerful desktop device. Leveraging a Dual core ARM Cortex A53 processor @ 1.2GHz and 4GB of DDR4 RAM, the Netgate 2100 shines as a 2.20 Gbps router, 964 Mbps firewall, or 254 Mbps IPsec VPN solution.
L3 Forwarding
- IPERF3 Traffic: 2.20 Gbps
- IMIX Traffic: 594 Mbps
Firewall
(10k ACLs)
- IPERF3 Traffic: 964 Mbps
- IMIX Traffic: 249 Mbps
IPsec VPN
(AES-GCM-128 / AES-NI w/ SafeXcel)
- IPERF3 Traffic: 254 Mbps
- IMIX Traffic: 90 Mbps
Netgate 2100 performance tests conducted with pfSense Plus software version 22.01
