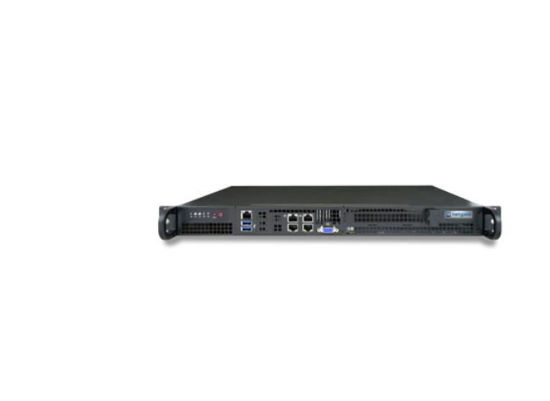

Netgate 1541 BASE pfSense+ Security Gateway
The Netgate® 1541 Security Gateway with pfSense® Plus software is our most powerful solution for medium to large business data centers or server rooms. It features a 2.1 GHz, 8-core, 16-thread Intel® Xeon® D-1541 processor with AES-NI, dual 10GBase-T ports and dual 1 Gbps RJ-45 ports. The CPIC-8955 Cryptographic Accelerator Card with QAT (QuickAssist Technology) can be added to offload encryption processing for improved VPN throughput performance. Other expansion options include a 2- or 4-Port Intel 10 GbE card for additional SFP+ ports, or a 4-Port Intel 1 GbE card for additional RJ45 ports. With RAID configurations and high availability options, the Netgate 1541 is our most robust solution for high-performance throughput and/or mission-critical deployment needs.
Featuring a Eight Core Intel Xeon® 2.1 GHz, upgradable memory up to 32 GB, and expandable network interfaces up to (8) ports the Netgate 1541 achieves up to 18.8 Gbps routing performance.
L3 Forwarding
- IPERF3 Traffic: 18.8 Gbps
- IMIX Traffic: 15.1 Gbps
Firewall
(10k ACLs)
- IPERF3 Traffic: 18.64 Gbps
- IMIX Traffic: 12.3 Gbps
IPsec VPN
(AES-GCM-128 w/QAT)
- IPERF3 Traffic: 9.30 Gbps
- IMIX Traffic: 1.77 Gbps
Netgate 1541 performance tests conducted with pfSense plus software version 22.01
pfSense Plus software provides the performance, flexibility, reliability and business assurance expected from leading secure networking applications:
- Up to 10 Gbps performance
- Flexible 3rd-party application options
- Traditional management mechanisms
- Proven reliability
- Complete business assurance support
All at a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular pfSense Plus use cases include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP Server, IDS/IPS, transparency caching proxy, web content filtering, failover WAN, and much more.
"IN CASE THERE'S ANY CONFUSION, THIS IS ONE MONSTER OF A FIREWALL." - TUAN NGUYEN, EDITOR-IN-CHIEF, MAXIMUM PC
HARDWARE SPECIFICATION:
| CPU | Intel "Xeon-DE" D-1541, 2.1 GHz FCBGA 1667 supported SoC |
|---|
| CPU Cores | Eight Cores, 45W |
|---|
| Networking | Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI) |
|---|
| Storage | 500 GB M.2 SSD |
|---|
| Memory | 16 GB ECC DDR4 RDIMM (expandable to 32 GB) |
|---|
| Expansion | 1x PCI-E 3.0 x 16 (in x4) AOC Slot
6x SATA3 ports |
|---|
| Other Ports | 1x BMC integrated ASPEED AST2400
1x IPMI Port
1x VGA Port
1x Fast UART 16550 Serial Port (header) |
|---|
| USB Ports | 2x USB 3.0 ports |
|---|
| LED | Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Information LED (temp., status) |
|---|
| Enclosure | 19" 1U Rack Mount |
|---|
| Form Factor | 1U 1.7"x17.2"x9.8" |
|---|
| Cooling | 200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan |
|---|
| Power | 1x SATA DOM power connector 100-240V, 50-60Hz, 2.6 Amp MAX
AC Inlet: IEC320-C14 (3 PIN)
Power Cord: NEMA 5-15P to IEC320-Cxx |
|---|
| Environmental | 10°C to 35°C Operating Temp
8% to 90% Operating Relative Humidity (non-condensing) |
|---|
| Power Consumption | 20 W (idle) |
|---|
| Certifications | FCC, CE, RoHS, UL, UKCA |
|---|
KEY FEATURES:
LOW TOTAL COST OF OWNERSHIP
- No artificial limits or add-ons required to make your system fully functional.
- No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
- Standard configuration with 16GB of RAM and 256GB Micron M.2 SSD*.
- Low power requirements to help save you money.
- This system is designed for a long deployment lifetime.
GROWS WITH YOU
- From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
- Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
- Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering. 1
- Maximum Active Connections: 16,000,000 (32,000,000 with 32 GB RAM)
EASY GUI MANAGEMENT
- Manage pfSense Plus software settings through our web-based GUI.
- No fumbling with a command line interface or typing arcane commands.
SECURE REMOTE ACCESS
- Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security, or connect to the Cloud!
- Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.
BEST FOR:
- Medium to Large Sized Networks with 1U rack mount cabinets
- Medium to Large Sized Branch Office with heavy loads
- Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On Premises Appliance
- Enterprise
- Anyone with High-Speed 10 Gigabit and/or 1 Gigabit Connections
- Anyone with many VPN Connections
- Anyone with high speed connections who wish to configure IDS/IPS features
SOFTWARE FEATURES:
pfSense Plus software is a powerful firewall, router and VPN solution that leverages a number of highly-regarded open-source projects. The software competes effectively with far more expensive, commercial alternatives and is used by hundreds of thousands of businesses, educational institutions, and government agencies all over the world. Leading secure-networking features and capabilities include:
- Ad blocker (pfBlockerNG)
- Captive Portal
- CARP / HA
- DNS Server
- DHCP Server
- HTTP transparent / web / reverse proxy (Squid)
- IP / Country block list (pfBlocker)
- IDS/IPS
- Packet capture / inspection
- Port forwarding
- QOS / rate limiters
- Software load balancer (HA Proxy)
- Traffic monitoring
- Traffic logging, statistics, and graphs
- Traffic shaping
- VLAN
- Wake-on-LAN
- Website blocker (pfBlocker)
Learn more about the power of pfSense Plus software here.
ADDITIONAL INFORMATION:
Your purchase includes all of these super neat things, which will help you get started with pfSense Plus software:
- Complimentary 24x7 zero-to-ping support from Netgate Global Support
- Access to the continuously updated pfSense online documentation
- ACB: Automatic Encrypted Configuration Backup Service
SUPPORT INFORMATION
- Technical assistance is available from Netgate Global Support 24x7x365.
- TAC Lite is included with the purchase of your Netgate appliance.
- TAC Pro and TAC Enterprise SLA descriptions and pricing are available here.
- Help is available on our community forum here.
WARRANTY INFORMATION
- One-year manufacturer's hardware warranty information is here.
- Extended warranties for US customers are available from Extend. More information on their offer and warranty policy can be viewed here.
- Standard 30 day return policy. Netgate does not sell seconds or returns. An open box fee may apply.
- All specifications subject to change without notice
