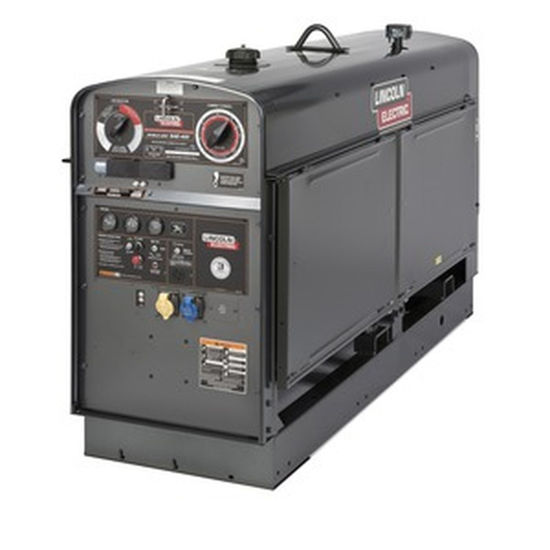

Lincoln Welding machine SAE 400 amps

This product is a Diesel Workhorse™ For demanding jobs that call for high amperage capabilities, the SAE-400® offers 400 amps for DC stick welding and AC power. The SAE-400® is powered by a heavy duty Perkins® industrial diesel engine. This engine offers low maintenance and long life. Add CV wire welding with the optional CV Adapter.
SKU: RD2014
Call for pricing
  • Rugged Construction
    • Heavy gauge steel case withstands rough field handling.
  • Dual Continuous Output Control
    • Continuous adjustment of voltage and current.
    • Select either a soft “buttery” arc or snappy “digging” arc for fast, highquality welding.
  • Arc Gouging
    • Arc gouging with up to 3/8 in. (10 mm) carbons.
  • Multiple Arcs
    Euro and NEMA receptacles for 60 Hz AC generator power.
    • Large-capacity DC weld output makes the SAE-400® the #1 choice for multiple arcs with the Multi-Weld™ 350 system. Available power is 22,500 watts at 60V DC. (See recommended accessories section.)
  • 3,000 watts 1-phase 120V or 240V

Techinical specs

  • RATED OUTPUT
    • 400A DC/40V100%
    • 500A DC/40V/60%
    OUTPUT RANGE
    • 80-575A
    GENERATOR OUTPUT
    • 3000 Watts
    TYPE OF ENGINE
    • Perkins® 1104A-44 Diesel Non-EPA
    HP AND SPEED
    • 64.4@1710
    CYLINDERS
    • 4
    DIMENSIONS (H X W X D)50.1 in x 28 in x 83 in (1273 mm x 711 mm x 2109 mm)
    NET WEIGHT1037kg
