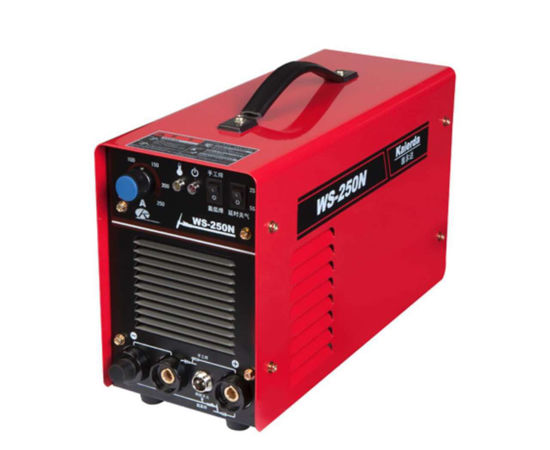

Kaierda Tig Welding machine WS250N

Kaierda Tig Welding machine WS250N is a multifunctional welding machine, it is also a IGBT inverter welding that is light and portable with high frequency arch striking, it has high efficiency and energy saving All our Kaierda welding machines are portable and great quality

Be the first to review this product

SKU: RD2011

Call for pricing

Qty:

FEATURES OF KAIERDA BIG WELDING MACHINE WS 200N:

• IGBT inverter technology: small, light and portable
• Peak current control mode: high reliability of power device
• High frequency arc striking: high success of arc striking, stable welding with small current and good welding bead
• Inner-loop control: stable output and well against voltage fluctuations
• High efficiency: energy saving
• Wide scope of application: suitable for j421,j422,acid electrode and J506,J507, basic electrode welding,widely used for nonferrous metal welding including carbon steel, stainless steel and copper

TECHNICAL SPECIFICATION:

Technical Specification

Welding machine	WS-200N	WS-250N
Input voltage(V)	1phase,AC220,50/60Hz
Rated input current(A)	24	42
Max effective input current(A)	14.2	24.8
Rated input power capacity(KVA)	5.3	9.2
O-Load voltage(V)	62
Working voltage(V)	10.2-16.8	10.2-18
Rated duty cycle(%)	35%
Efficiency(%)	≥85%
COSö	≥0.85
Insulation class	H
Protection degree of enclosure	IP21S
Weight(kg)	7.5	8.5
Dimension(mm)	350×142×235	385×160×245
