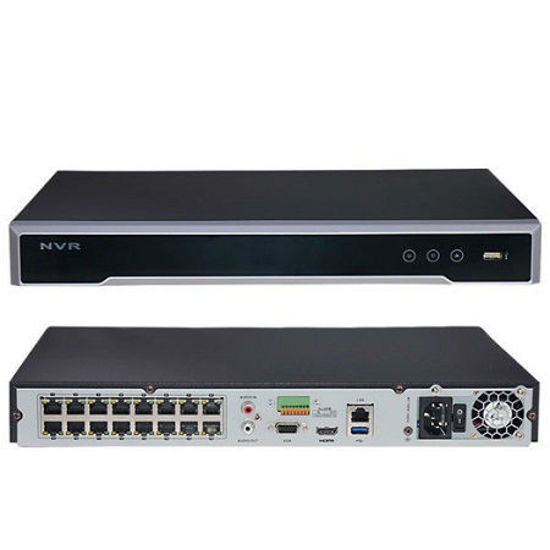

Picture of HIKVISION DS-7616NI-Q2/16P 16Channel 8MP POE NVR

HIKVISION DS-7616NI-Q2/16P 16Channel 8MP POE NVR

H.265+/H.265/H.264/H.264+ video formats Connectable to the third-party network cameras Up to 16 IP cameras can be connected Recording at up to 8 MP resolution Supports live view, storage, and playback of the connected camera at up to 8 MP resolution HDMI and VGA independent outputs HDMI Video output at up to 4K (3840 Ã 2160) resolution 2 SATA interfaces connectable for recording and backup H.265+ compression effectively reduces the storage space and costs by up to 75% 1 self-adaptive 10/100/1000 Mbps network interface 8/16 independent PoE network interfaces are provided Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc. Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized VCA detection alarm is supported Instant playback for assigned channel during multi-channel display mode Smart search for the selected area in the video; and smart playback to improve the playback efficiency Hik-Connect for easy network management
Be the first to review this product
SKU: RD3020
Call for pricing
Video/Audio Input

Two-way audio input:         1-ch, RCA (2.0 Vp-p, 1kÎ)
IP video input:              16-ch
IP Video input:              Up to 8 MP resolution

Network

Incoming bandwidth:          40Mbps
Outgoing bandwidth:          40Mbps

Video/Audio Output

HDMI Output:                 1-ch, resolution:4K (3840 Ã 2160)/30Hz,1920 Ã 1080/60Hz, 1600 Ã 1200/60Hz, 1280 Ã1024/60Hz, 1280 Ã 720/60Hz, 1024 Ã 768/60Hz.
Recording Resolution:        8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:                1-ch, RCA (Linear, 1kÎ)
Synchronous Playback:        4-ch
VGA Output:                  1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding

Decoding format:             H.265/H.265+/H.264/H.264+/MPEG4
Capability:                  1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback:        8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Hard Disk

SATA:                        1 SATA interfaces
Capacity:                    Up to 6TB capacity for each disk
Capacity:                    Up to 6TB capacity for each HDD

External Interface

Network Interface:           1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:               2, USB2.0

POE

Supported Standard:          AF and AT
Interface:                   16 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power:                  80W

General

Power Supply:                100 to 240 VAC
Power:                       180W
Consumption(without hard disk and POE):        15W
Working Temperature:        -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:           10 % ~ 90 %
Chassis:                    1U chassis
Dimensions:                 385 Ã 315 Ã 52 mm (15.2"Ã 12.4" Ã 2.0")
Weight(without HDD):        2.6 kg (5.7 lb)
