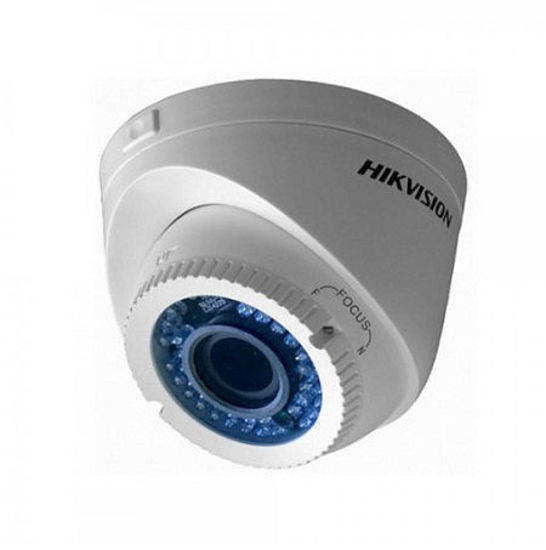

HIKVISION DS-2CE56C0T-VFIR3F (2.8-12mm) HD720P Vari-focal IR Turret Dome Camera

Camera

Image Sensor :       1 MP CMOS image sensor

Signal System :       PAL/NTSC

Effective Pixels :     1296 (H) x 732 (V)

Min. illumination :    0.01 Lux@(F1.2,AGC ON), 0 Lux with IR

Shutter Time :         1/25 (1/30 )s to 1/50,000 s

Lens :                     2.8 – 12 mm @ F1.4 Angle of view: 71.78°- 23.42 °

Lens Mount :           φ14

Day & Night :          ICR

Angle Adjustment :  Pan: 0°to 360°, Tilt: 0°to 75°, Rotation: 0°to 360°

Synchronization :    Internal Synchronization

Video Frame Rate : 720p@25fps/720p@30fps

HD Video Output :  1 Analog HD output

S/N Ratio :              >62 dB

General

Operating Conditions :        -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Power Supply :                   12 V DC±15%

Power Consumption :         Max. 4 W

Protection Level :                IP66

IR Range :                          Up to 40m

Dimension :                         Φ130.54 × 102.4mm (Φ5.1” × 4”)

Weight :                              Approx. 710g
