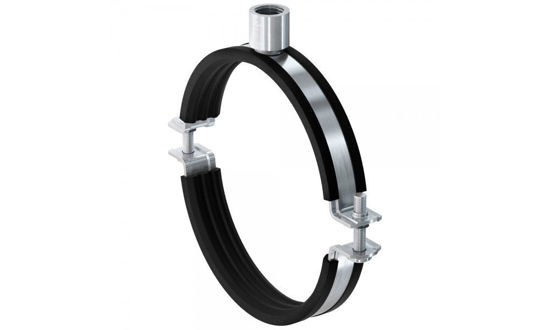

Heavy Duty Pipe Clamp FRSM 4 "

features Connection nut with inch thread. Soundproofing. Loss prevention of the screw. Two-screw design for optimized adaptation to tube outside diameter.

Be the first to review this product

SKU: RD00019

Call for pricing

Qty:

Product description

The fischer solid pipe clamp FRSM 4 "for nominal size 4" with sound insulation insert for fastening medium to heavy pipes with threaded rods or hanger bolts. The two-screw design allows optimized adaptation to the outside pipe diameter. Connection nut with inch thread for a pipe fitting with higher bending strength. Pipe clamp screws with loss prevention.

To take advantage

The female thread fitting nut allows a pipe fitting with higher bending strength.
High tested loads guarantee the safe operation of the FRSM.
The sound insulation insert provides sound reduction and prevents contact corrosion.
The two-screw design allows optimized adaptation to the outside pipe diameter.
The loss protection of the screws ensures trouble-free installation.

characteristics

Material: Steel DD11 (Material No. 1.0332/PN - 535506) according to DIN EN 10111
Galvanizing : galvanized, 5 - 9 μm
Connection nut: ½ "resistance welded
Locking screw: flat head screw with combination cross slot
Material sound insulation insert: EPDM; Chlorine; silicone-free
Temperature range: -50 ° C to +110 ° C
Hardness: 45 ± 5 ° Shore A
Fire behavior: DIN 4102: class B2

Applications

Attachment of medium to heavy pipes with threaded rods (threaded pipe and base plates)

Technical specifications

connecting thread	A	1/2 "
nominal size		4 '	[Inch]
clamping range	D	112-118	[Mm]
Width B	B	171.7	[Mm]
Height H	H	163	[Mm]
Width x thickness	bXS	25 x 2.5	[Mm]
Height Z	Z	94	[Mm]
Screw		M 8
Max. static load (central train)	N rec.	3.15	[KN]
amount		10	Units)
GTIN (EAN code)		4048962240351
