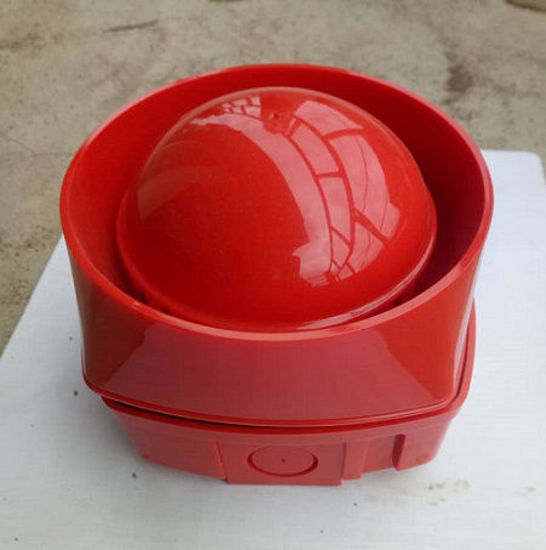

Gent Conventional Sounder C3IP-SN-R

Non-Addressable Audible Visual Devices Sounders
Honeywell’s Non-Addressable sounder is a high quality device designed to alert building occupants of an emergency. The product features a new folded horn design which provides outstanding sound output at low current draw. With its modern design, global tone set and extensive installer-friendly features, the sounder is the logical choice for specifiers, installers and distributors.

ELECTRICAL

Operating Voltage:                                    9 to 29VDC
(Approved to EN54-3 @ 9-14V and 18-29V)
Average Current Consumption:              31mA @ 29VDC (Tone 8)
Maximum Sound Output:                        107dB (A) @ 1m (Tone 23)
ENVIRONMENTAL
Operating Temperature:                          -25°C to 70°C
Relative Humidity:                                     93% ±3% non condensing
Ingress Protection:                                     IP21C – low profile base IP65 – deep base
MECHANICAL
Body Colour:                                               Red / White
Number of Tones:                                      32 includes a bell tone
(Full tone table available on website & installation manual)
Volume Setting:                                         High or medium
Cable Termination Size:                           0.5 – 2.5mm²
Material:                                                      Flame retardant PC/ABS
Gross Weight – Standard device:          (low profile) 190g
(deep / IP65) 197g
Gross Weight – First Fix option:           (low profile) 200g
(deep / IP65) 207g
