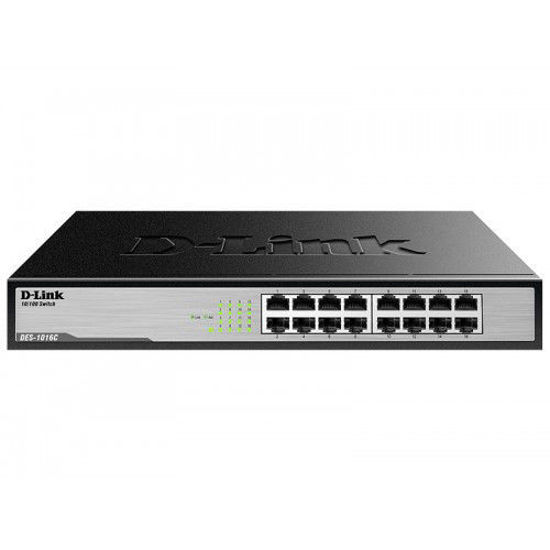

D-Link DES-1016C
General features: Device Interfaces • 16 10/100 Mbps LAN ports Standards • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3x Flow Control • IEEE 802.1p QoS • IEEE 802.3az Energy-Efficient Ethernet (EEE) Switching Capacity • 3.2 Gbps switching fabric Advanced Features • Auto MDI/MDIX crossover for all ports • Secure store-and-forward switching scheme • Full/half-duplex for Ethernet/Fast Ethernet speeds • Supports 9 216 byte jumbo frames • Back pressure at half-duplex operation • Wire-speed reception and transmission • Store and-Forward switching method • Auto-negotiation for each port • QoS (4 queues, strict mode)
Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
Transmission Method
• Store-and-forward
MAC Address Table Size
• 8 000
Packet Filtering/Forwarding Rates
• Ethernet: 14 880 pps per port
• Fast Ethernet: 148 800 pps per port
RAM Buffer
• 256 KB per device
Physical Parameters
LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports
Dimensions
• 282.2 x 151 x 44.5 mm
Weight
• 1.06 kg
Power
• 100 to 240 V AC
Power Consumption
• Power On (Standby): 0.79 watts
• Maximum: 5 watts
Temperature
• Operating: 0В° to 40В°C
• Storage: -40В° to 70В°C
Humidity
• Operating: 10% to 90% (Non-condensing)
• Storage: 5% to 95% (Non-condensing)
MTBF
• 1 215 319 hours
Maximum Heat Dissipation
• 22.75 BTU/h
