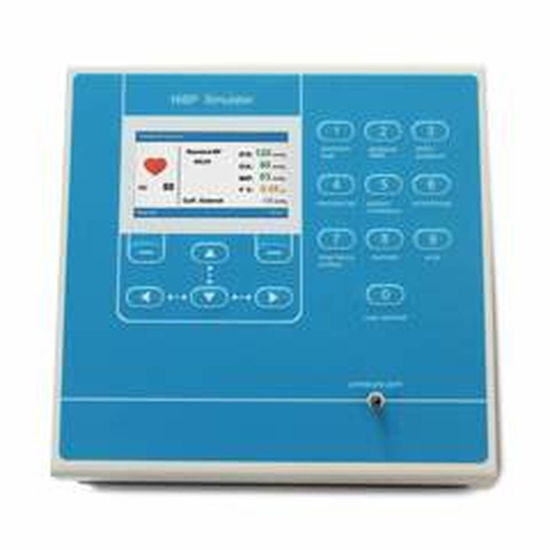

CONTEC MS200 NIBP Simulator Blood Pressure Monitor Accuracy Simulation Test

Main features of CONTEC MS200 NIBP Simulator Blood Pressure Monitor Accuracy Simulation Test

◆ 4.3" LCD display,interface is concision,operation is simple and convenient.

◆ Provides pressure gauge testing,pressure leak testing,relief valve testing functions .

◆ Build-in pump provides pressure source with leak and pressure relief tests

◆ NIBP simulations for both arm and wrist cuffs.

◆ Provides adult,neonate, seven variations patients conditions,user-defined simulations.

◆ Provides arrhythmias,respiratory artifact simulations.

◆ Built-in air chamber to simulate adult and neonate cuff.

◆ Heart Rate for NIBP Simulations

• Heart Rate Accuracy:   ±1BPM
• Patient Conditions:
• Weak pulse,Tachycardia,Obese ,Geriatric: ±1% ±1BPM
• Mild exercise:     ±1.5% ±1BPM
• Strenuous exercise:    ±3% ±1BPM

◆ Pressure measurement

• Units:      mmHg，kPa，cmH2O，inH2O，psi
• Range:      0 mmHg-400 mmHg
• Resolution: 1 mmHg,  0.1 kPa, 1 cmH2O,  1 inH2O,  0.1 psi
• Accuracy:   0 - 300 mmHg: ±0.5 % of reading ±1 mmHg, 301 - 400 mmHg: ±2 % of reading

◆ Pressure Generation

• Pressure Generator, Static Pressure Range: 50 mmHg-400 mmHg
• Difference between target pressure and actual pressure : ±10 mmHg from 100-400 mmHg with a minimum volume of 300 cc
• Internal leak rate: <2 mmHg per minute, with a minimum volume of 300 cc

◆ Power: 100 - 240 V  AC 50/60 Hz, 60 VA

◆ Environmental Conditions

• Working temperature:  15℃ to 40℃（59℉ to 104℉）
• Storage temperature:  -20℃ to +65℃（-4℉ to +149℉）
• Relative humidity:    < 90％

Specification of CONTEC MS200 NIBP Simulator Blood Pressure Monitor Accuracy Simulation Test

◆ Display: 65k colors 4.3 inch TFT Display, brightness can be changed.

◆ Size : (L x W x H)27 cm x 26.5 cm x 13.2 cm

◆ Weight: 3.5kg
