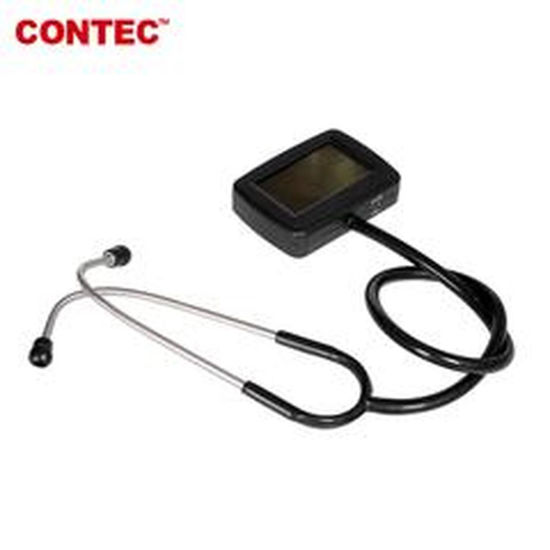

CONTEC CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate

CONTEC CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate Our Contec CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate is a kind of multi-functional visual stethoscope and It is added with collection ECG waveform function on the basis of the traditional medicinal stethoscope. The Contec CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate can display the heart rate, the pulse oxygen Saturation and pulse rate can also be monitored through SpO2 probe. The Contec CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate is applicable for family, hospital, private Clinique, community medical treatment.etc.

Be the first to review this product

SKU: RD1021

Call for pricing

Qty:

Main features of CONTEC CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate

◆ Regular stethoscope
◆ Compact and portable,easy to use
◆ Display of ECG waveform, heart rate,SpO2 ,pulse rate ,pulse waveform
◆ Adjustable screen contrast
◆ Alarm for SpO2 and pulse rate exceeding limits
◆ Low power consumption

Main Parameters of CONTEC CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate

◆ Heart Rate measuring range: 30bpm～300bpm ,Accuracy: ±2 bpm or ±2%(select larger)
◆ SpO2 measuring range: 0%～100% (the resolution is 1%),Accuracy:70%~100% :±2% ,below 70% unspecified
◆ Pulse Rate measuring range: 30bpm～250bpm,Accuracy: ±2 bpm or ±2%(select larger)
◆ Resistance to surrounding light: The deviation between the value measured in the condition of man-made light and indoor natural light and that of darkroom is less than ±1%.
◆ Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown orrectly when pulse-filling ratio is 0.4%. SpO2 error is ± 4%, pulse rate error is ±2 bpm or±2% (select larger).
◆ Display : 2.7" LCD
◆ Power consumption:≤60mA
◆ Voltage: DC 3.6 ~ 4.2V
◆ Power Supply: 3.7V Lithium Battery
◆ Battery working hour:It can last more than 20 hours when the power is full.
◆ Safety Type:Internally powered equipment，B Type

Accessories of CONTEC CMS-M Electronic Multifunctional Visual Stethoscope with SPO2 probe, Heart Rate

◆ A User Manual
◆ A power adapter
◆ A data line
◆ An oximeter probe (optional, BF applied part )

PHYSICAL CHARACTERISTICS OF CONTEC CMS-M ELECTRONIC MULTIFUNCTIONAL VISUAL STETHOSCOPE WITH SPO2 PROBE, HEART RATE

Dimension: 87mm(L)×63mm(W)×19mm(H)

Weight: 1.8 kg
