Cold Clamp FRS K 34 - 35/19

features Two-screw design for optimized adaptation to tube outside diameter. Self-adhesive closure flap. Age resistant. Integrated load distribution plate.

Be the first to review this product

SKU: RD00021

Call for pricing

Qty:

Product description

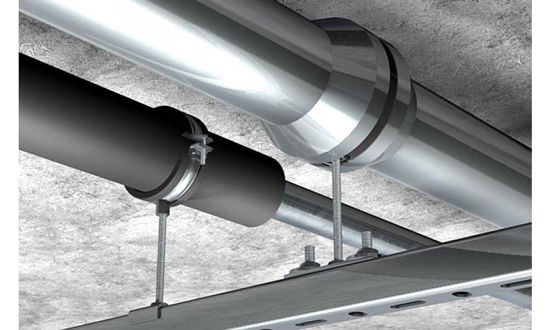

The fischer cold clamp FRS K for the installation of pipes in refrigeration and air conditioning. Connection nut with combination thread M8 / M10 for holding threaded rods or hanger bolts. The self-adhesive flap ensures the optimal function of the cold clamp. Age-resistant material for a consistent function. Pipe clamp screws with loss prevention. Integrated load distribution plate secures load transfer and provides higher loads.

To take advantage

The self-adhesive flap ensures the optimal function of the cold clamp.
Age-resistant material ensures a consistent function of the FRS-K.
The double-threaded connection nut ensures flexibility on the construction site.
The loss protection of the screws ensures trouble-free installation.
The integrated load distribution plate secures the load transfer and provides higher loads.

characteristics

Material: rigid polyurethane foam, silicone-free
Diffusion resistance: 7000 μ
Bulk density: 80 kg / m³
Compressive strength: 0.67-0.75 mPa
Thermal conductivity (at 0 ° C): 0.024-0.026 W / mK
Locking screw: flat head screw with combination cross slot
Temperature range: -45 ° C to +105 ° C
Fire behavior: DIN 4102: class B2

Applications

Installation of pipelines in refrigeration and air conditioning

Technical specifications

nominal size		1"	[Inch]
connecting thread	A	M 8 / M 10
insulation thickness	S AF	19	[Mm]
Width B	B	115	[Mm]
Height H	H	97	[Mm]
Height Z	Z	53	[Mm]
Screw		M 6
Length of insulation material	b2	50	[Mm]
Max. static load (central train)	N rec.	12:20	[KN]
amount		1	Units)
GTIN (EAN code)		4048962074932
