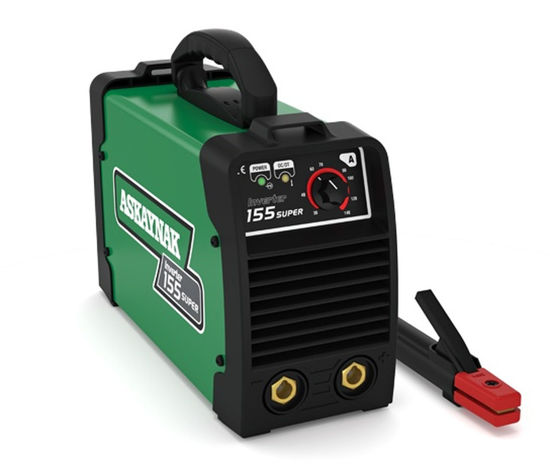

Askaynak ELectrical welding machine Inverter 155 Super

Our Askaynak Electrical welding machine inverter 185 is a heavy duty electrical welding machine. Features of Askaynak electrical welding machine inverter 155 super. You will be able to achieve seamless welding seams thanks to uninterrupted welding with 2,5 – 3,25 mm(max) diameter rutile and especially basic electrodes on unalloyed, low alloyed and stainless steel materials. Inverter 155-Super doesn’t contaminate the mains since it doesn’t produce noise emission and in terms of electromagnetic it doesn’t interfere with other machines and measurement devices located in the environment. In addition; since it isn’t get affected by mains hums or electromagnetic fields of other equipment operating nearby, no performance loss occurs during the welding process. 16x25 mm long-lasting and high-strength CE certificated welding sockets are used in Askaynak Inverter 155-Super. Now cutting under harsh conditions will not be a problem for you and for your machine. 220V-1Ph input voltage and maximum output current of 140 A provide a continuous welding with electrodes in diameters of 2.5 mm. You will have all advantages and guarantees offered by CE certi?cate and regulations regarding LVD and EMC speci?ed in EN 60974-1 and EN 60974-10 standards..

Be the first to review this product

SKU: RD2002

Call for pricing

Qty:

Features of Askaynak electrical welding machine inverter 155 super.

You will be able to achieve seamless welding seams thanks to uninterrupted welding with 2,5 – 3,25 mm(max) diameter rutile and especially basic electrodes on unalloyed, low alloyed and stainless steel materials.
Inverter 155-Super doesn’t contaminate the mains since it doesn’t produce noise emission and in terms of electromagnetic it doesn’t interfere with other machines and measurement devices located in the environment. In addition; since it isn’t get affected by mains hums or electromagnetic fields of other equipment operating nearby, no performance loss occurs during the welding process.
16x25 mm long-lasting and high-strength CE certificated welding sockets are used in Askaynak Inverter 155-Super.
Now cutting under harsh conditions will not be a problem for you and for your machine.
220V-1Ph input voltage and maximum output current of 140 A provide a continuous welding with electrodes in diameters of 2.5 mm.
You will have all advantages and guarantees offered by CE certi?cate and regulations regarding LVD and EMC speci?ed in EN 60974-1 and EN 60974-10 standards..

Control Panel and Functions

Kontrol Paneli ve Kontrol Ünitelerinin Fonksiyonları

Technical Properties of Askaynak electrical welding machine 155 super

INVERTER 155-SUPER

Input Voltage	:	220 V 1~Ph 50/60 Hz
Power Input @ Rated Output	:	4,5 kW (15%)
Input Current (Max)	:	29 A (15%)
Effective Current (Max)	:	11.5 A
Power Factor	:	0,70
Rated Output Current, Voltage and Duty Cycle	:	140 A; 25,6 V (15%) 90 A; 23,6 V (60%) 70 A; 22,8V (100%)
Open Circuit Voltage	:	77 V (DC)
Current Range	:	30 - 140 A
Fuse Size and Type	:	16 A (delayed fuse)
Protection Class	:	IP21S
Cooling System	:	Ventilation cooling
Weight (Without Cables)	:	6 kg
Dimensions (WxHxD)	:	138 x 250 x 370 mm
Compliance	:	EN 60974-1 ; EN 60974-10 ; CE
