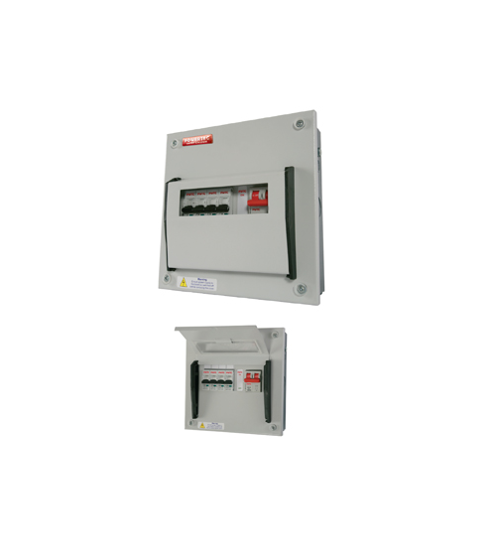

Powertec Consumer Unit (may also be known as a consumer control unit). A particular type of distribution board comprising a type-tested co-ordinated assembly for the control and distribution of electrical energy, principally in domestic premises, incorporating manual means of double-pole isolation on the incoming circuit(s) and an assembly of one or more fuses, circuit breakers, residual current operated devices or signalling and other devices proven during the type-test of the assembly as suitable for use.
Fitted with 63A DP Isolator. Single phase and neutral sheet steel powder coated distribution system with acrylic transparent cover for protection of MCBs fitted with or without DP Isolator or ELCB as incomer and fitted with Bus Bar, Neutral Link, Earth Bar and Din Rail. Suitable for use on 240/415V, 50Hz Supply.
Single Phase(SPN) 4, 6, 8 & 12Ways,
MCB Protected Socket: are available with a choice of Single Pole SPN, 10Amp, 15Amp, 20Amp, 32Amp, 40Amp, 50Amp, 63Amp, 80Amp, 100Amp.
These are most elegantly designed DBs, to suit the decor of homes
Raised neutral link for easy wiring
Spring loaded outer cover swings open by just pressing the lock as in case of Elegance series.
Supplied with masking sheet to protect components from cement during plastering
Supplied with neutral & earth link, top & bottom detachable plates
